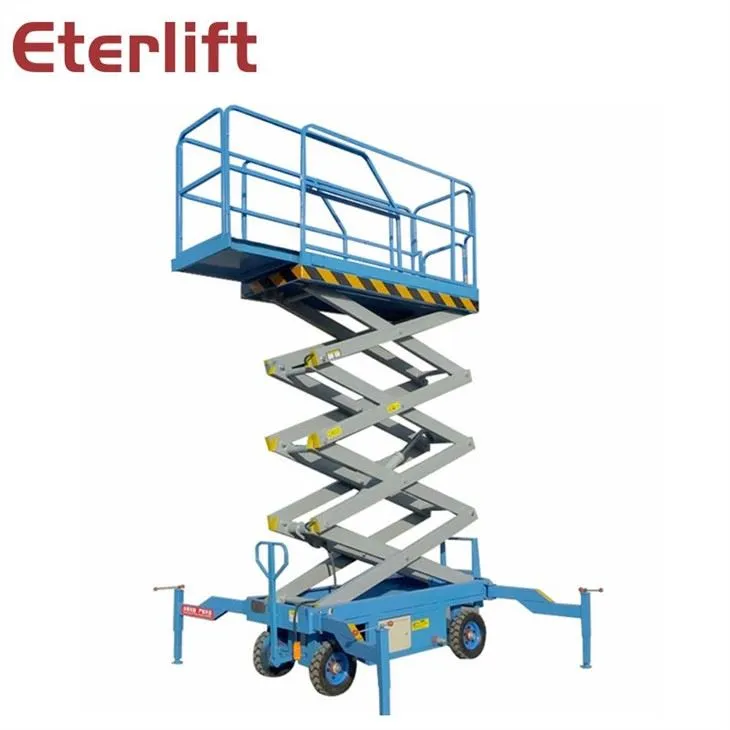

Elektrik Hydrauliic Sizo Lift Platfom sipote koule dives kalite, kapasite batri ak pouvwa pwolonje voltaj personnalisation, ki gen avantaj ki genyen nan operasyon senp, gwo pwa leve ak mouvman fasil. Idwolik Scisor Left Table ak platfom Cantilever se yon echel ekselan pou antretyen bilding ak protrudes. Ekipman an gen yon wote nan 4-20m ki ka chwazi. Chaj la se pi wo a 500KG. Li kapab tou Customized dapre kondisyon. Kom plant la pwodiksyon nan Elektrik Hydrauliic Sizo Lift Platfom, Qingdao Eterlift Machin co, Ltd gen plis pase eksperyans ane 20 'nan konsepsyon ekipman. Pwodwi li yo te ekspote nan Ewop, Amerik di No ak anpil lot peyi ak rejyon yo.
Espesifikasyon:
Model | Max.platfomWote (m) | Kapasite chaj | Tablo Gwose(mm) | Gwose an jeneral (mm) | N.W.(kg) |
500kg chaj kapasite | |||||
ESL0504 | 4 | 500 | 2100*830 | 2250*950*1100 | 800 |
ESL0506 | 6 | 500 | 2100*830 | 2250*950*1200 | 880 |
ESL0507 | 7 | 500 | 2100*830 | 2250*950*1280 | 970 |
ESL0508 | 8 | 500 | 2100*930 | 2250*1060*1380 | 1050 |
ESL0509 | 9 | 500 | 2100*930 | 2250*1060*1500 | 1165 |
ESL0510 | 10 | 500 | 2100*1230 | 2250*1350*1530 | 1360 |
ESL0511 | 11 | 500 | 2100*1230 | 2250*1350*1650 | 1400 |
ESL0512 | 12 | 500 | 2550*1530 | 2796*1670*1750 | 2260 |
ESL0514 | 14 | 500 | 2812*1530 | 3067*1730*1810 | 2400 |
ESL0516 | 16 | 500 | 2812*1600 | 3067*1800*2080 | 3500 |
ESL0518 | 18 | 500 | 3070*1600 | 3321*1810*2080 | 3900 |
1000kg chaj kapasite | |||||
ESL1004 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
ESL1006 | 6 | 1000 | 2100*1200 | 2200*1350*1300 | 1400 |
ESL1008 | 8 | 1000 | 2100*1200 | 2200*1350*1420 | 1585 |
ESL1010 | 10 | 1000 | 2100*1200 | 2200*1350*1530 | 1700 |
ESL1012 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
ESL1014 | 14 | 1000 | 2812*1530 | 3067*1750*1810 | 2765 |
1500kg chaj kapasite | |||||
ESL1506 | 6 | 1500 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL1508 | 8 | 1500 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL1510 | 10 | 1500 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL1512 | 12 | 1500 | 2550*1530 | 2250*1762*1850 | 2900 |
ESL1514 | 14 | 1500 | 2816*1600 | 3045*1852*1960 | 3400 |
2000kg chaj kapasite | |||||
ESL2006 | 6 | 2000 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL2008 | 8 | 2000 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL2010 | 10 | 2000 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL2012 | 12 | 2000 | 2550*1600 | 2796*1852*1954 | 3200 |
ESL2014 | 14 | 2000 | 2816*1600 | 3067*1852*2230 | 3900 |
Pwodwi Detay montre:
2pcs nan Kontwol Panels, Youn se sou ko a, lot la se sou platfom la
Segonde mete kawotchou kawotchou
Janm adaptab, apwopriye pou yon varyete de anviwonman opere
Gwo batri kapasite ak tan ki ap travay lontan
Ki estab sistem idwolik
Model | Max.platfomWote (m) | Kapasite chaj | Tablo Gwose(mm) | Gwose an jeneral (mm) | N.W.(kg) |
500kg chaj kapasite | |||||
ESL0504 | 4 | 500 | 2100*830 | 2250*950*1100 | 800 |
ESL0506 | 6 | 500 | 2100*830 | 2250*950*1200 | 880 |
ESL0507 | 7 | 500 | 2100*830 | 2250*950*1280 | 970 |
ESL0508 | 8 | 500 | 2100*930 | 2250*1060*1380 | 1050 |
ESL0509 | 9 | 500 | 2100*930 | 2250*1060*1500 | 1165 |
ESL0510 | 10 | 500 | 2100*1230 | 2250*1350*1530 | 1360 |
ESL0511 | 11 | 500 | 2100*1230 | 2250*1350*1650 | 1400 |
ESL0512 | 12 | 500 | 2550*1530 | 2796*1670*1750 | 2260 |
ESL0514 | 14 | 500 | 2812*1530 | 3067*1730*1810 | 2400 |
ESL0516 | 16 | 500 | 2812*1600 | 3067*1800*2080 | 3500 |
ESL0518 | 18 | 500 | 3070*1600 | 3321*1810*2080 | 3900 |
1000kg chaj kapasite | |||||
ESL1004 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
ESL1006 | 6 | 1000 | 2100*1200 | 2200*1350*1300 | 1400 |
ESL1008 | 8 | 1000 | 2100*1200 | 2200*1350*1420 | 1585 |
ESL1010 | 10 | 1000 | 2100*1200 | 2200*1350*1530 | 1700 |
ESL1012 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
ESL1014 | 14 | 1000 | 2812*1530 | 3067*1750*1810 | 2765 |
1500kg chaj kapasite | |||||
ESL1506 | 6 | 1500 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL1508 | 8 | 1500 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL1510 | 10 | 1500 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL1512 | 12 | 1500 | 2550*1530 | 2250*1762*1850 | 2900 |
ESL1514 | 14 | 1500 | 2816*1600 | 3045*1852*1960 | 3400 |
2000kg chaj kapasite | |||||
ESL2006 | 6 | 2000 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL2008 | 8 | 2000 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL2010 | 10 | 2000 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL2012 | 12 | 2000 | 2550*1600 | 2796*1852*1954 | 3200 |
ESL2014 | 14 | 2000 | 2816*1600 | 3067*1852*2230 | 3900 |
