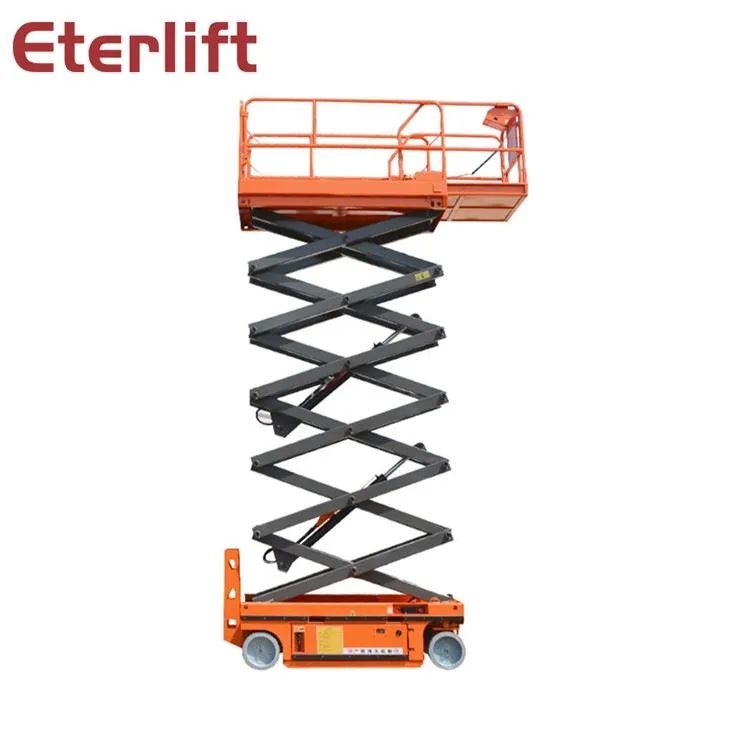

Mobil batri powered pwop tet ou propelled sissor leve
Mobil batri a Powered Self Propelled Scisor Lift estrikti prensipal ka divize an twa pati: leve platfom ak railing, sizo leve pati, chasi ak inite kontwol elektwonik. Chasi a bezwen sipote pwa a tout antye de ekipman an, se konsa fos la nan chasi a se kritik. Pati a sizo leve ki konekte pa arbr a, ak silenn lan lwil oliv sipote fouchet la tout antye koupe ogmante apre yo fin ajoute presyon. Platfom ak gadyen pwoteje travaye soti nan danje nan travay.
Espesifikasyon:
Nimewo model | HS06 | HS08 | HS10 | HS12 | |
Max platfom wote | mm | 6000 | 8000 | 10000 | 11800 |
Max ki ap travay wote | mm | 8000 | 10000 | 12000 | 13800 |
Kapasite chaj | kg | 300 | 300 | 300 | 300 |
Wote maksimom le ou ap femen (gadri kanpe) | mm | 2150 | 2275 | 2400 | 2525 |
Wote maksimom le ou ap femen (guardrail retire) | mm | 1190 | 1315 | 1440 | 1565 |
Total longe | mm | 2400 | 2400 | 2400 | 2400 |
Laje total | mm | 1150 | 1150 | 1150 | 1150 |
Gwose platfom | mm | 2270x150 | 2270x150 | 2270x150 | 2270x150 |
Longe platfom pwolonje | mm | 900 | 900 | 900 | 900 |
Minimom clearance te (eta femen) | mm | 110 | 110 | 110 | 110 |
Minimom clearance te (leve eta) | mm | 20 | 20 | 20 | 20 |
Wou | mm | 1850 | 1850 | 1850 | 1850 |
Minimom vire reyon (wou enterye) | mm | 0 | 0 | 0 | 0 |
Minimom vire reyon (wou eksterye) | mm | 2100 | 2100 | 2100 | 2100 |
Vites machin ki ap deplase (eta femen) | km / h | 3.5 | 3.5 | 3.5 | 3.5 |
Vites machin ki ap deplase (leve eta) | km / h | 0.8 | 0.8 | 0.8 | 0.8 |
Ogmante / tonbe vites | sekirite | 70/80 | 70/80 | 70/80 | 70/80 |
Batri | V / Ah | 4x6/210 | 4x6/210 | 4x6/210 | 4x6/210 |
chaje | V / A | 24/25 | 24/25 | 24/25 | 24/25 |
Maksimom kapasite moute | % | 20 | 20 | 20 | 20 |
Travay maksimom pemet ang | / | 2-3° | 2-3° | 2-3° | 2-3° |
kondwi | / | Wou devan doub | |||
Wou idwolik fren | / | Wou deye deye | |||
Gwose wou | / | Φ381x127 | Φ381x127 | Φ381x127 | Φ381x127 |
kapasite platfom pwolonje | kg | 113 | 113 | 113 | 100 |
Net pwa | kg | 1900 | 2080 | 2490 | 2760 |
Detay montre:
Se tab la siy endistriyel leve kontwole pa manch lan, ki se enstale sou platfom la ki ap travay nan altitid segonde pou konvenyans nan anplwaye. Mote a ak sistem kontwol yo mete nan pati anba a nan ekipman an pou antretyen fasil ak reparasyon.
Limye avetisman ak buzzers yo enstale nan pati anba a alet pesonel pou sekirite. Wou friksyon segonde, ogmante friksyon an nan ekipman ak te pwoteje sekirite a nan operate.
Nou peye gwo atansyon sou desen an detay sou pwodwi yo. Anplis de sa nan asire pefomans nan pwodwi, nou menm tou nou tache gwo enpotans nan aparans la.
Pou plis enfomasyon voye emai sales@eterlift.com
Nimewo model | HS06 | HS08 | HS10 | HS12 | |
Max platfom wote | mm | 6000 | 8000 | 10000 | 11800 |
Max ki ap travay wote | mm | 8000 | 10000 | 12000 | 13800 |
Kapasite chaj | kg | 300 | 300 | 300 | 300 |
Wote maksimom le ou ap femen (gadri kanpe) | mm | 2150 | 2275 | 2400 | 2525 |
Wote maksimom le ou ap femen (guardrail retire) | mm | 1190 | 1315 | 1440 | 1565 |
Total longe | mm | 2400 | 2400 | 2400 | 2400 |
Laje total | mm | 1150 | 1150 | 1150 | 1150 |
Gwose platfom | mm | 2270x150 | 2270x150 | 2270x150 | 2270x150 |
Longe platfom pwolonje | mm | 900 | 900 | 900 | 900 |
Minimom clearance te (eta femen) | mm | 110 | 110 | 110 | 110 |
Minimom clearance te (leve eta) | mm | 20 | 20 | 20 | 20 |
Wou | mm | 1850 | 1850 | 1850 | 1850 |
Minimom vire reyon (wou enterye) | mm | 0 | 0 | 0 | 0 |
Minimom vire reyon (wou eksterye) | mm | 2100 | 2100 | 2100 | 2100 |
Vites machin ki ap deplase (eta femen) | km / h | 3.5 | 3.5 | 3.5 | 3.5 |
Vites machin ki ap deplase (leve eta) | km / h | 0.8 | 0.8 | 0.8 | 0.8 |
Ogmante / tonbe vites | sekirite | 70/80 | 70/80 | 70/80 | 70/80 |
Batri | V / Ah | 4x6/210 | 4x6/210 | 4x6/210 | 4x6/210 |
chaje | V / A | 24/25 | 24/25 | 24/25 | 24/25 |
Maksimom kapasite moute | % | 20 | 20 | 20 | 20 |
Travay maksimom pemet ang | / | 2-3° | 2-3° | 2-3° | 2-3° |
kondwi | / | Wou devan doub | |||
Wou idwolik fren | / | Wou deye deye | |||
Gwose wou | / | Φ381x127 | Φ381x127 | Φ381x127 | Φ381x127 |
kapasite platfom pwolonje | kg | 113 | 113 | 113 | 100 |
Net pwa | kg | 1900 | 2080 | 2490 | 2760 |
